what is the AQL What Does AQL Mean?

AQL‘ stands for ‘Acceptance Quality Limit‘, and is defined as the “quality level that is the worst tolerable” in ISO 2859-1. It represents the maximum number of defective units, beyond which a batch is rejected. Importers usually set different AQLs for critical, major, and minor defects. Most Asian exporters are familiar with this type of setting.

For example: “AQL is 1.5%” means “I want no more than 1.5% defective items in the whole order quantity, on average over several production runs with that supplier”.




The “AQL Tables”

The “AQL tables” are statistical tools at the disposal of buyinspection levelers (for product inspections). They are an industry standard. Most suppliers involved in international trade are familiar with it.

They help determine two key elements:

  1. How many samples should be picked and inspected, among a batch of product or parts?
  2. Where is the limit between acceptability and refusal, when it comes to defective products?

(If you’d like to see how to use AQL tables, jump to the section “Getting familiar with the AQL tables” below.)

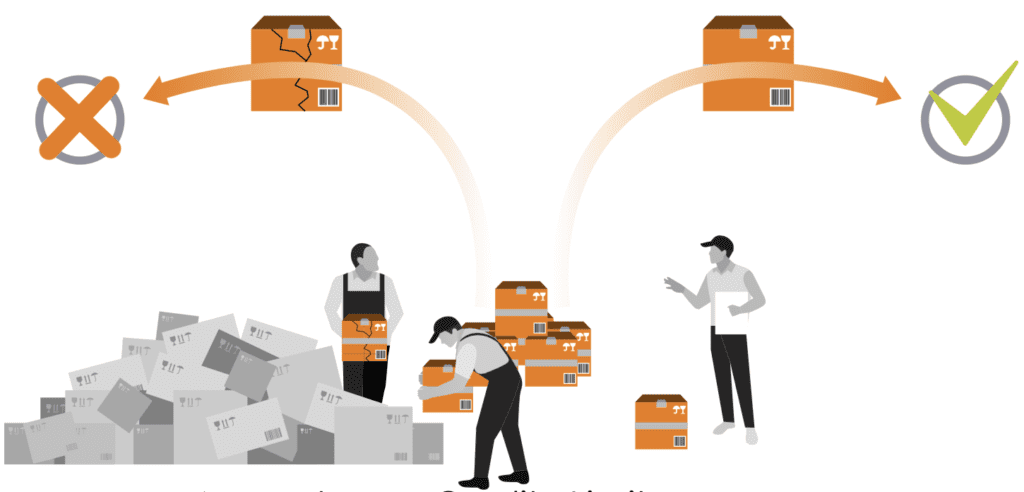

Acceptance or rejection of samples


AQL Calculator

Our calculator is based on the AQL tables but gives you a fast answer. Fill in the calculator to easily find your perfect sample size (the number of pieces that should be randomly checked from the lot being examined) and the number of major and minor defects that can be tolerated based on your AQL specifications.

(This is based on the ISO 2859-1 standard, normal severity, single sampling plans only.)

The need for an objective measurement of quality

In certain product categories, there will be defective products in virtually every production batch. It is often true even after the manufacturer has checked each individual product and has repaired the defective ones since the visual inspection is not 100% reliable.

Therefore, in many supplier/buyer relationships (particularly when the application does not result in life or death outcomes), the supplier is not expected to deliver defect-free goods. The buyer needs to control the quality of purchased goods since he does not want too many defects. But what does “too many” mean?

How to set the limit between acceptability and refusal in a way that can be agreed upon and measured? This is what the AQL comes into play.




A look at AQL in more detail

As I wrote above, the ‘AQL’ is the “quality level that is the worst tolerable” on average over a period covering a number of batches.

In practice, three types of defects are often distinguished. For most consumer goods, the limits are:

  • 0% for critical defects (totally unacceptable: a user might get harmed, or regulations are not respected).
  • 2.5% for major defects (these products would usually not be considered acceptable by the end user).
  • 4.0% for minor defects (there is some departure from specifications, but most users would not mind it).

These proportions vary in function of the product and its market. Components used in building an airplane are subject to much lower AQL limits.

Note that this tool is used mostly during final outgoing inspections (when the products are ready to be shipped out), and sometimes during production (when the number of products is sufficient to have an idea of the batch’s average quality).




Getting familiar with the “AQL tables”, sometimes called “ANSI tables”

(Note: you can watch this in video form on Youtube by clicking here.)

Before using the AQL tables, you should know three parameters:

1. The ‘lot size’

If you ordered different products, consider each product as a separate lot. (The quantity of each product is the lot size). If you ordered only one product, the lot size is the total batch quantity.

2. The inspection level

Different inspection levels will command different numbers of samples to inspect. In this article, we will stick to the so-called “level II” under “normal severity” and to single sampling plans.

3. The AQL limits

The AQL limits appropriate for your market. If your customers accept very few defects, you might want to set a lower AQL for both major and minor defects.

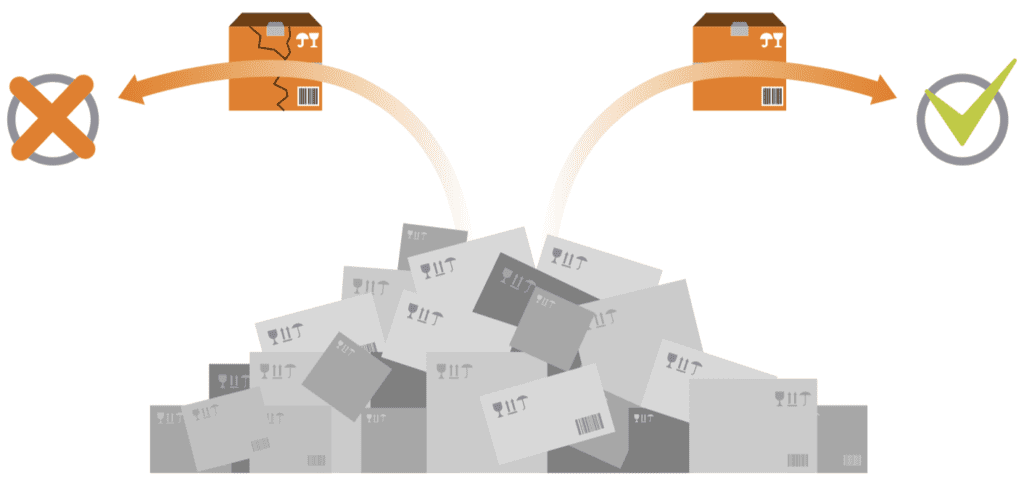

Acceptance based AQL statistics
Some specialized quality inspection software will show all the numbers automatically, but it is good to understand how to read the tables.

There are basically two tables. The first one tells you which ‘code letter’ to use. Then, the code letter will give you the sample size and the maximum numbers of defects that can be accepted.

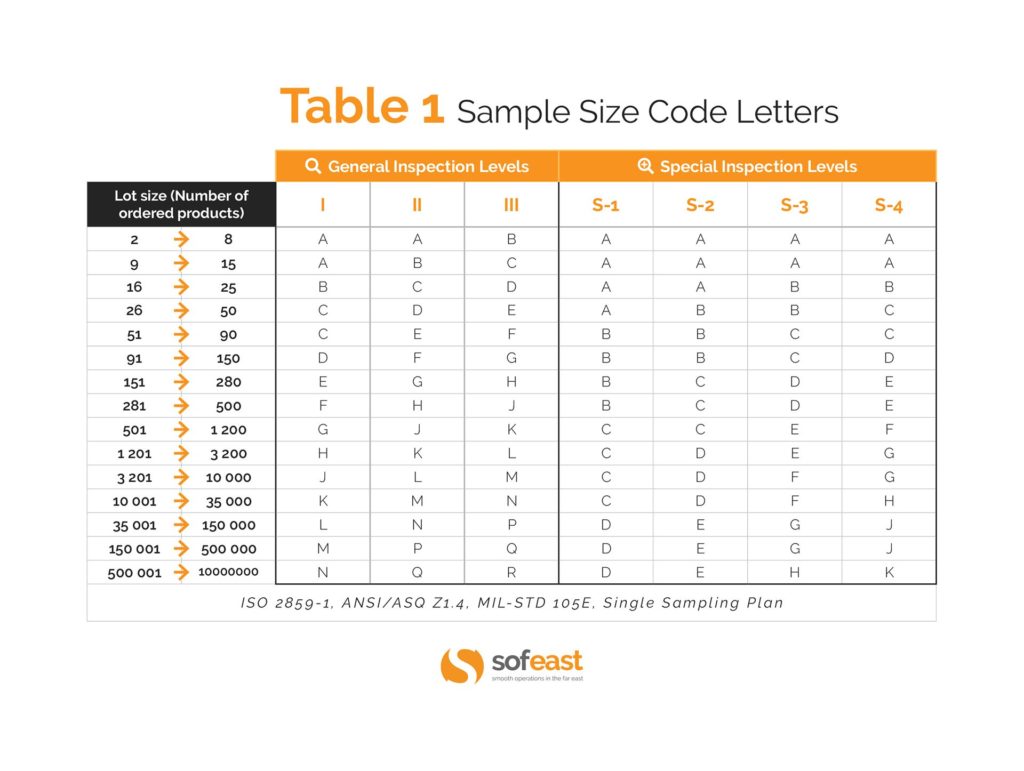

First table: sample size code letters



How to read table 1?
If you follow my example, I assume your ‘lot size’ is comprised between 3,201 pcs and 10,000 pcs, and that your inspection level is ‘II’. Consequently, the code letter is “L”.

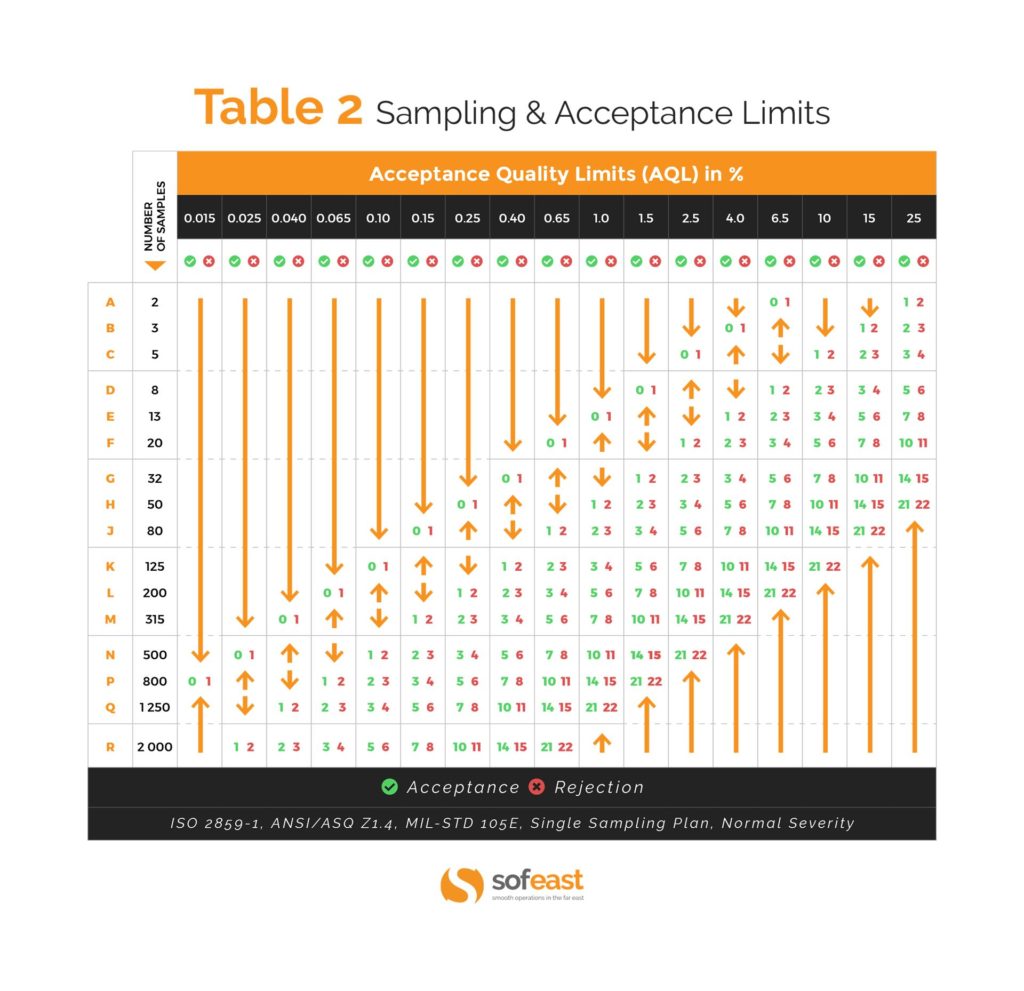

Second table: single sampling plans for level II inspection (normal severity)



How to read table 2?
Our code letter is “L”, so you will have to draw 200 pcs randomly from the total lot size. Besides, I assume you have set your AQL at 2.5% for major defects and 4.0% for minor defects. Therefore, here are the limits: the products are accepted if NO MORE than 10 products with major defects AND NO MORE than 14 products with minor defects are found. For example, if you find 15 products with major defects and 12 products with minor defects, the products are refused. If you find 3 with major defects and 7 with minor defects, they are accepted.

Note: in quality inspections, the number of defective products is only one of the criteria. It is sometimes called “quality”, or “quality findings”. The other criteria are usually on the inspector’s checklist, which typically includes:

  • Packaging conformity (barcodes, inner packing, cartons, shipping marks…).
  • Product conformity (aspect, workmanship…). If all the products are in red color instead of orange, there is no need to count each sample as a defect. It makes more sense to refuse for product conformity.
  • Specific tests defined in the inspection checklist (they might not be performed on all inspected samples if they are time-consuming or destructive).



How To Read the AQL Tables for Quality Inspections (Random Sampling)

If you really want to understand the concept of the AQL, you should spend about 20 minutes (total) watching this video on Youtube. Don’t forget to like and share it, please.

Or check out this article on how to read the AQL tables.




Special case: the AQL in the Codex standard stan233 (food products)

There is another widely-used standard for food products. It calls for taking a much smaller sample (which make sense since opening a food product’s packaging means destroying it).

The general approach is the same, from what I saw, with some differences (e.g. the tables are different depending on the net weight of a unit of product).




Watch this video and learn how to improve management of quality from Chinese & Asian suppliers

book sofeast consultation












Frequently Asked Questions about AQL

Questions about the general process of acceptance sampling

So, basically, I have to authorize the factory to produce some defects?

In theory no. That’s why the AQL was renamed, from “acceptable quality level” to “acceptance quality limit”. It is a “limit” (and a loose one at that).

Here is what the ISO 2859 standard says:

“Although individual lots with quality as bad as the acceptance quality limit may be accepted with fairly high probability, the designation of an acceptance quality limit does not suggest that this is a desirable quality level. Sampling schemes […] are designed to encourage suppliers to have process averages consistently better than the AQL.”

Note that, in practice, using these statistics means you assume the factory cannot reasonably be expected to turn out 100% good quality.

Alternatively, you can choose an “acceptance on zero” plan. As soon as one defect is found, the inspection is failed. But you can impose this on suppliers only in situations where quality requirements are very high (in the auto industry, in aerospace…).

As a buyer, should I charge back the value of the defective products to the manufacturer?

This is not standard practice. The standard practice is actually to charge nothing back, as long as the inspection is passed.

However, as the buyer, make sure to add this provision in your contract with the supplier: if an inspection is failed, the supplier has to sort & rework the goods, and submit them to a new inspection (and the re-inspection costs are charged back to them).

How to choose an AQL limit for my products?

I explained it in details in this article. It depends on your distribution channel and your product’s end-use. Note that your supplier might refuse AQL limits they estimate as too tight (i.e. too low).

If I find too many defective samples, I have to reject the lot. However, what can I do to try and save the lot?

You can switch to 100% inspection and discard rejects.

You can also have a manager (on the buyer’s side) take a business decision – is it actually acceptable, even though the ‘quality result’ is not good?

In any case, don’t change the rules of the game (checking more samples by applying level III, going into double sampling), just to your purpose. This is not good. And it will send the signal to the supplier that your rules are negotiable or flexible.

What are the limits of a quality control approach based on random sampling and AQL limits?

A: There are several limits:

1. An AQL limit is a target rather than a maximum. The buyer might have a nasty surprise when receiving a batch of products that “passed” the inspection. Read more in this article.

2. A statistical QC approach does nothing to reduce the defects in the first place. Read more in this article.

Can’t I just do my own sampling plan?

Sure. If you have a math background, you know that you’ll need to use a hypergeometric distribution (since samples are taken from the lot at random, are checked, and not put back into the lot until the end of the inspection). Specialized software like Minitab can help you a lot here.

If you want to avoid statistics altogether, your limits on the numbers of defects will not make much sense, but they might “feel” right intuitively and it might make you more comfortable… Just be aware of their shortcomings.

Make sure you get the supplier’s agreement on your plan. This might be the hardest thing to achieve!

Is there a more efficient way of checking the quality of finished products?

There are many ways of drawing samples and checking their quality. If you don’t mind a more dynamic inspection plan, where the number of samples to check can’t be predicted in advance, you might want to follow a multiple-sampling plan or even a sequential sampling plan. On average, for the same confidence in the decision, fewer samples will need to be checked.

Is the concept of “AQL” only this one sampling standard?

No. For example, it is also in the Codex standard stan233 (generally used for certain food products).It calls for taking a much smaller sample (which make sense since opening a food product’s packaging means destroying it).

The general approach is the same, with some differences (e.g. the tables are different depending on the net weight of a unit of the product).

What is AQL standard? What is AQL level? What is AQL sampling?

When you hear one of these terms, it generally refers to the acceptance sampling standard detailed in the ISO 2859-1 standard. Scroll to the top of this page and you will see how it works.

Can we also use this sampling standard to check incoming goods (components)? Or is it only for finished products?

You may use it for checking pretty much anything, as long as the individual samples can be classified as “OK” or “defective”. This standard is often used for checking batches of components or subassemblies. It can also be applied for verification of inventory accuracy, or invoices accuracy, and so on.

We are setting different inspection levels for different parts of the inspection. When determining the acceptance of the entire lot, should we somehow combine it all to determine acceptance/rejection?

Let’s say you want to do basic visual checks, and functional tests, on inspection level II. And dimensional inspection (which takes more time) are done on level S-3.
In principle, when it comes to counting defectives and getting to a pass/fail result, you should treat your inspection on level II as one inspection, and that on S-3 as a separate inspection.
It may all ends up in the same report, of course. But the results should come out separately. Then, if you have a pass on what you check in level II, but a fail on what you checked in level S-3, the whole report would logically be failed.




Questions about the way the underlying statistics work

Why not just say, ‘we’ll check 10% of the quantity’, or whatever percentage deemed appropriate?

This is discouraged, as clause 4.3.3 of the ISO 2859-10 standard explains:

Ad hoc sampling should not be used because it will lead to unknown risks that may be too high. Furthermore, there is no formal basis for either the acceptance or non-acceptance of the lot. Examples of ad hoc sampling include the sampling of a fixed percentage of a lot or a convenience sample taken at haphazard times.

And here is one thing many buyers don’t realize. They say “inspect 10%”. But, as we go up in the total quantity, the proportion of products checked can decrease, for the same confidence in the inspection results.

As you can see in the chart below, if you follow the AQL tables, the number of samples to check (vertical axis) increases at a slower pace than the total quantity (horizontal axis).

sample size relative to lot size

Do we have to follow levels I, II, III, etc. and AQLs 1.0, 1.5, 2.5, etc.?

No. They are mere parameters that were thought to be applicable to most situations. For the sake of simplicity, it is better to have 3 tables with 10-20 columns each, than 50 tables with 100 columns each. Remember, all this was computed by hand in the 1930s, and inspectors had to look up the tables in paper form.

If you have a statistical software package such as Minitab, you can adjust the parameters as you see fit.

How to calculate AQL values?

If you have a statistical software package such as Minitab, you can re-do all the calculations and even adjust the parameters as you see fit. Some people have also done it in Excel.

If you deviate from the standard parameters, make sure your supplier confirms your new sampling plan & limits prior to any inspection work. You don’t want to get into a long justification after you reject a batch…

Based on my AQL, I calculated the proportion of defects authorized. Why don’t they correspond to the maximum number of defects authorized?

It is true. In our example above, 2.5% of 200 samples is 5 samples, but we accept the goods even if 10 samples are found with a major defect.

Why this difference? There are heavy statistics behind this issue. To keep it simple, the producer’s risk is his risk of rejection (based on the random element when drawing the sample) even though his products (if they were all checked) would be accepted. That risk is about 5% in this standard. And, using the same logic, there is a consumer’s risk and is around 10%. As you can see, this standard is favorable to the producer’s side.

What are the “reduced” and “tightened” severities?

They are designed to be used in very specific situations when a producer is particularly reliable, or on the contrary, fails too often.

In practice, these severities are seldom used. Most inspections are done in normal severity. The rules to switch from normal to reduced or tightened are considered an important part of the standard (actually the evolutions of these rules constituted the main changes from MIL-STD 105A and MIL-STD 105E) but can be ignored.

Jim Bossert wrote this in the Feb. 2016 issue of Quality Progress:

You can use any plan without using the switching rules, but you do run the risk of not meeting the alpha risk in the end. These plans were developed to be used, as documented.

A normal plan is generally used and the switching rules come in when the clearance number has been obtained.

Some processes may never switch. If you choose a plan that is tightened or reduced to start with, you potentially will either spend too much on inspection (tightened) or risk having a bad product go to the customer (reduced).

It is a business decision for you to make if your customer is not demanding it. The switching rules are there to protect the producer when the product is running well or it has problems.

What is NOT defined in the standard, and is free to be applied in different ways?

Several important things are not even mentioned in the ISO 2859-1 standard:

  • How many cartons to pick (in case products are presented in master cartons, and the unit to check is the product). In most inspections, the number of cartons picked is the square root of the total number of cartons in the lot. Some companies request 2 times the square root.
  • What the classes of defects should be. In most inspections, defective units can be classified as “critical”, “major”, or “minor”, and each company can define what is in what class. Some companies add extra classes: incidental, catastrophic, etc.



Special cases

If I find 3 minor defects on the same sample, should it be counted as 1 major defect?

The standard says nothing about this (or, more generally, about the way to count different classes of defects). So, this is up to your organization to decide.

One good way to think about it is, ‘is it a real problem if a consumer finds 3 minor defects on 1 product they bought?’ If the answer is “yes, definitely”, then count it all as 1 major defective unit.

What if we check the quality before the whole batch is completed?

A reader asked me about this special case. Production of 500,000 pieces is underway. An inspection is done when 10% of the production is ready. With a normal inspection level II, what is the sample size?

  • 800 because total production is 500,000?
  • 500 because pieces that are ready is only 50,000?

The short answer is, the standard doesn’t really address this special case, as it was primarily designed for an inspection after an entire batch has been made.

My practical answer is, go with this option:

  • 500 because pieces that are ready is only 50,000

Additional reading about AQL

For further reading on this topic, feel free to check out all of my AQL posts on QualityInspection.org and also read this detailed Quality Control basic concepts post here.

*Editor’s note: This post was originally published on QualityInspection.org as What is the AQL (Acceptance Quality Limit) in simple terms? in 2011, and has since been updated to include new information and formatting. It is recreated here for Sofeast readers.
